Jamis Trail X A2
Details
THE TRAILS ARE CALLING
Building great recreational-level bikes that ride much like our high-end bikes is a passion at Jamis. No bikes showcase our commitment to do just that better than these. The Trail X chassis emphasizes all-day performance with quick, but not overly twitchy handling attributes. Make no mistake though, if you want to throw down they're more than able to keep up.
FRAME MATERIALS
Trail X features lightweight and strong 6061 series aluminum tubing, featuring over-sized & tapered tubing for increased frame stiffness.
- 6061 aluminum frame
- SR Suntour XCT 30 HLO 27.5", coil spring, hydraulic speed lock out adjust, external preload adjustor
- Alex TD26 27.5" rims, 32H, alloy disc hubs
- microSHIFT Advent 9-speed drivetrain
- Sealed cartridge bottom bracket
- Shimano MT200 hydraulic disc brakes
- Jamis XC alloy handlebar & stem
- Jamis ATB Sport saddle

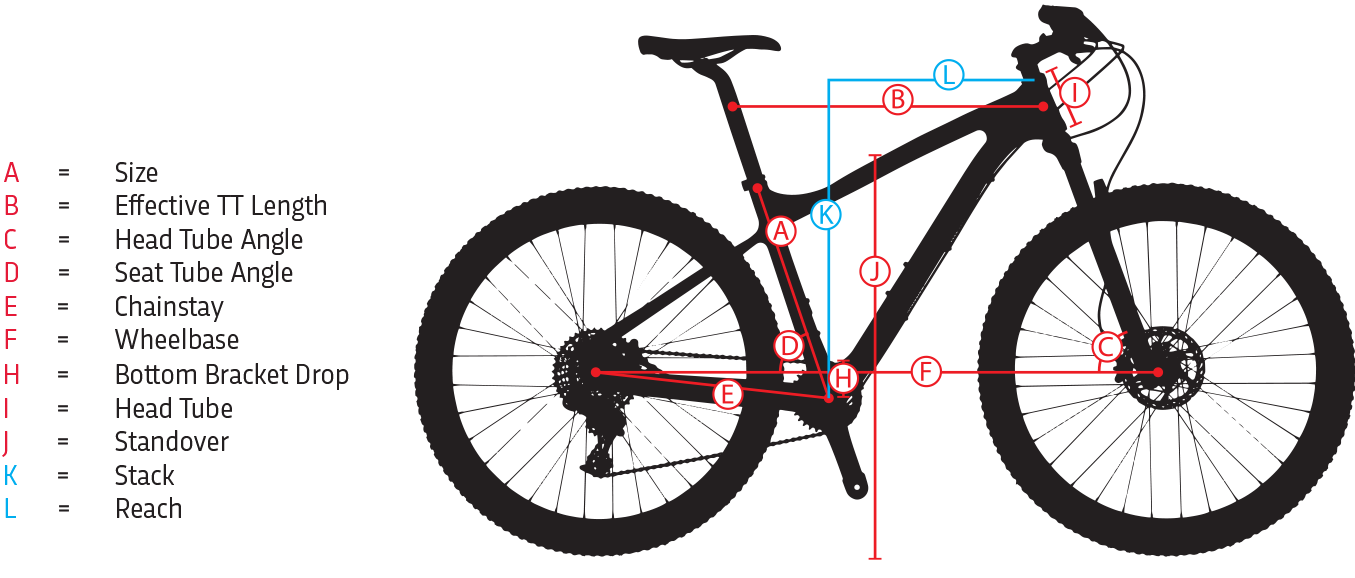

| TT EFFECTIVE Inch / mm | HT ANGLE | ST ANGLE | CHAINSTAY Inch / mm | WHEELBASE Inch / mm | BB DROP Inch / mm | HEADTUBE Inch / mm | STANDOVER Inch / mm | |
|---|---|---|---|---|---|---|---|---|
| 13" | 21.9 / 555 | 68.5° | 74° | 17.1 / 435 | 42 / 1075 | 2.0 / 50 | 3.7 / 95 | 27.5 / 700 |
| 15" | 23.3 / 585 | 68.5° | 74° | 17.1 / 435 | 44 / 1105 | 2.0 / 50 | 3.9 / 100 | 28.5 / 726 |
| 17" | 24.0 / 610 | 68.5° | 74° | 17.1 / 435 | 45 / 1132 | 2.0 / 50 | 4.5 / 115 | 30.0 / 762 |
| 19" | 25.0 / 635 | 68.5° | 74° | 17.1 / 435 | 46 / 1158 | 2.0 / 50 | 5.1 / 130 | 31.4 / 797 |
| 21" | 26.0 / 660 | 68.5° | 74° | 17.1 / 435 | 47 / 1184 | 2.0 / 50 | 5.5 / 140 | 32.7 / 831 |
Specs
| Frame | 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger |
|---|---|
| Fork | SR Suntour XCE 28 DS 27.5", coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel |
| Wheels | Alex TD26 27.5" double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes |
| Tires | CST Patrol, 27.5 x 2.25" |
| Bottom Bracket | Sealed cartridge |
| Crankset | Forged Alloy, 36/22T |
| Shifters | Shimano EF505, 2×8-speed |
| Front Derailleur | Altus |
| Rear Derailleur | Shimano Tourney |
| Cassette/Freewheel | Shimano HG31, 8-speed, 11-32T |
| Chain | KMC Z8.3, 8-speed |
| Brakes | Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors |
| Handlebars | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
| Tape/Grips | Kraton |
| Stem | Jamis XC alloy threadless, 31.8 x 3 ° rise x 60mm |
| Headset | Zero-stack internal cup, 8mm cone spacer |
| Seatpost | Jamis alloy micro-adjust, 31.6 x 350mm (15") 400mm (17"-21") |
| Saddle | Jamis ATB Sport |
| Pedals | MTB platform, hi-impact resin |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Nile Blue / 15-inch | 845436085586 | 03-3749BL | 210000003331 |
